JVC Projector Repair

JVC PROJECTOR REPAIR

We repair all JVC projector models for various uses, such as; classroom projectors, home multimedia projectors, business and enterprise level presentation projectors and projectors for places of worship.

JVC Projector Repair with Warranty

Repair and maintenance for wide range of JVC D-ILA projectors

Lens types of Standard throw, Exchangeable lens, Short throw, Ultra short throw with light source of Laser, Lamp, LED, DuraCore MultiColor Laser, DuraCore Laser offering native resolutions from UHD (3840 x 2160), WUXGA (1920 x 1200), 1080p Full HD (1920 x 1080), XGA (1024 x 768), WXGA (1280 x 800), and SVGA (800 x 600)

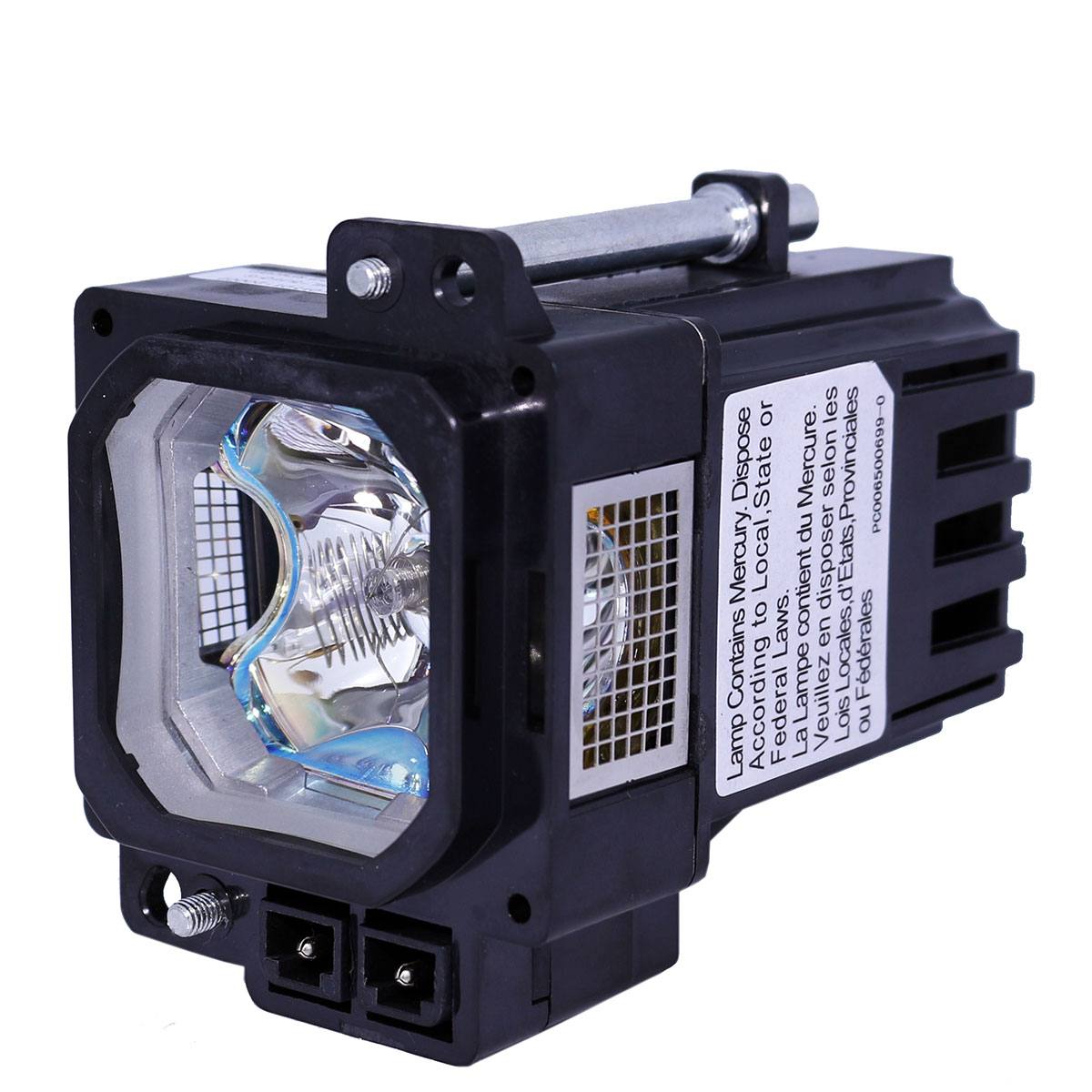

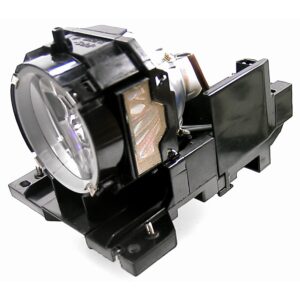

Genuine JVC Projector Lamps

We also stock genuine lamps for various JVC  projector models… If your projector is not listed below, do a search in the shop page or give us a call.

JVC DLA-M2000SC*, JVC DLA-M2000SC-V*, JVC DLA-M20U*, JVC DLA-M20U-V*, JVC DLA-M4000U*, JVC DLA-M5000L*, JVC DLA-M5000SCU*, JVC DLA-NX5, JVC DLA-NX7, JVC DLA-NX9, JVC DLA-QX1G*, JVC DLA-RS1000, JVC DLA-RS10U*, JVC DLA-RS15U*, JVC DLA-RS1U*, JVC DLA-HD750*, JVC DLA-HD950*, JVC DLA-HD990*, JVC DLA-HX1U*, JVC DLA-HX2U*, JVC DLA-L20U*, JVC DLA-M15U*, JVC DLA-M15U-V*, JVC DLA-M2000LU*, JVC DLA-M2000LU-V*, JVC DLA-HD10KS-SYS*, JVC DLA-HD10KU*, JVC DLA-HD250*, JVC DLA-HD250PRO*, JVC DLA-HD2K-DVO*, JVC DLA-HD2K-SO*. JVC DLA-HD2K-SYS*, JVC DLA-HD2KU*, JVC DLA-HD350*, JVC DLA-HD550*, JVC DLA-G20U-V*, JVC DLA-G3010Z*, JVC DLA-HD1*, JVC DLA-HD100*, JVC DLA-HD10K*, JVC DLA-HD10K-DVO*, JVC DLA-HD10K-SO*, JVC DLA-HD10K-SYS*, JVC DLA-HD10KS-DVO*, JVC DLA-HD10KS-SO*, JVC DLA-DS1U*, JVC DLA-F110E*, JVC DLA-G10E*, JVC DLA-G10U*, JVC DLA-G11U*, JVC DLA-G150CL*, JVC DLA-G150HT*, JVC DLA-G15U*, JVC DLA-G15U-V*, JVC DLA-G20U*, JVC DLA-SH4KNLG*, JVC DLA-SH7NLG, JVC DLA-SX21SU*, JVC DLA-SX21U*. JVC DLA-SX21UH*, JVC DLA-VS2000U*, JVC DLA-VS2100NL*, JVC DLA-VS2100U*, JVC DLA-VS2200G*, JVC DLA-VS2200ZG*, JVC DLA-VS2300G, JVC DLA-VS2300ZG, JVC DLA-VS2400G* JVC DLA-VS2400ZG*, JVC DLA-VS2500G, JVC DLA-RS620*, JVC DLA-RS640U*, JVC DLA-RS65*, JVC DLA-RS66*, JVC DLA-RS67*, JVC DLA-RS6710*, JVC DLA-S10E*, JVC DLA-S10U*, JVC DLA-S15U*, JVC DLA-S15U-V*, JVC DLA-RS4910*, JVC DLA-RS50*, JVC DLA-RS500*, JVC DLA-RS520*, JVC DLA-RS540U, JVC DLA-RS55*, JVC DLA-RS56*, JVC DLA-RS57*, JVC DLA-RS60U3D*, JVC DLA-RS4000U*, JVC DLA-RS420*, JVC DLA-RS440U*, JVC DLA-RS45*, JVC DLA-RS4500K, JVC DLA-RS46*, JVC DLA-RS48*, JVC DLA-RS4800*, JVC DLA-RS4810*, JVC DLA-RS49*, JVC DLA-RS1X*, JVC DLA-RS2000, JVC DLA-RS20LTD*, JVC DLA-RS20U*, JVC DLA-RS25U*, JVC DLA-RS2U*, JVC DLA-RS3000, JVC DLA-RS35U*, JVC DLA-RS40*, JVC DLA-RS400*, JVC DLA-X970R*, JVC DLA-X990R*, JVC ILA-12K*, JVC LX-D1000*, JVC LX-D1010*, JVC LX-D1020*, JVC LX-D3000ZU*, JVC LX-D300U*, JVC LX-D500*, JVC LX-D700*, JVC DLA-X70R*, JVC DLA-X750R*, JVC DLA-X75R*, JVC DLA-X770R*, JVC DLA-X790R, JVC DLA-X9*, JVC DLA-X900RKT*, JVC DLA-X90R*, JVC DLA-X950R*, JVC DLA-X95R*, JVC DLA-X30*, JVC DLA-X35B*, JVC DLA-X35W*, JVC DLA-X500R*, JVC DLA-X550R*, JVC DLA-X55R*, JVC DLA-X570R*, JVC DLA-X590R*, JVC DLA-X7*, JVC DLA-X700R*, JVC DLA-VS2500ZG, JVC DLA-VS3000, JVC DLA-VS4010NLG, JVC DLA-VS4500*, JVC DLA-VS4550, JVC DLA-VS45NV, JVC DLA-VS4600, JVC DLA-VS4700, JVC DLA-VS47NV, JVC DLA-X3*

[vc_tta_accordion active_section=”1″ collapsible_all=”true” title=”OPTOMA PROJECTOR ERROR CODES”][vc_tta_section title=”JVC PROJECTOR ERROR CODES” tab_id=”1615324836700-d3e850fc-9dbcf082-2872″]

Indicator Display on the Main Unit

Meaning of the lighting figures

X95R_LED1

Operation mode display

Displays using the different colors and solid/blinking light of the “STANDBY/ON” indicator.

X95R_LED2

Estimated timing for lamp replacement

Displays using the solid/blinking light of the “LAMP” indicator. The “STANDBY/ON” indicator, which shows the operating mode of the unit, is displayed simultaneously as described above.

X95R_LED3

Warning display

You can tell the details of a warning from the (repeated) displays of the “WARNING” and “LAMP” indicators. The “STANDBY/ON” indicator, which shows the operating mode of the unit, is displayed simultaneously as described above.

The Warning mode is activated once the message is displayed. Projection is interrupted, and the cooling fan is turned on for about 100 seconds.

The power cannot be turned on again while cooling is in progress. Check the following after cooling is complete.

Indicator Status (Solid/Blinking)Blinking FrequencyDescriptionCheck and Countermeasure
X95R_LED4

x1

Abnormality in the power supply

Check that nothing is blocking the air inlets.

Check that the external temperature is normal.

Countermeasure: Leave the unit unoperated until it cools down. After that, turn on the power again.

x2

Cooling fan stopped abnormally

x3

Internal temperature is abnormally high

x4

External temperature is too high

x5

Abnormal circuit operation

X95R_LED5

x1

Abnormal circuit operation

x2

x3

x4

Abnormal operation of the automatic lens cover

Check that nothing is blocking the auto lens cover.

Countermeasure: Turn on the power again.

X95R_LED6

x1

Lamp does not light up and unit is unable to project

Check that the lamp unit and lamp cover are correctly installed.

Countermeasure: Turn on the power again.

x2

Lamp goes out during projection

x3

When the lamp cover is removed

If the Warning mode is activated again, wait for the cooling fan to stop, followed by pulling out the power plug from the outlet.
Request for repair at your authorized dealer or a nearby service center.

(*) If the scheduled time for lamp replacement is exceeded, the indicator may light up.

[/vc_tta_section][/vc_tta_accordion]
